From Context to Answer

RAG Foundations & Data Pipelines — Session 5

2026-04-26

A. Citation-Aware Prompting

Designing prompts for grounded generation

Agenda

• A. Citation-Aware Prompting — Grounded generation with sources
• B. Context Window Management — Token budgets and pruning
• C. Retrieval Evaluation — Hit Rate, MRR, Precision, Recall
• D. Generation Evaluation — LLM-as-Judge with DeepEval
• E. Evaluation Pipeline — Golden datasets and CI/CD
• F. Wrap-up — The complete evaluation framework

Grounded Prompting

Generic Prompt

"Answer based on the context."

• Vague instruction
• No citation requirement
• No fallback behavior
• Hallucinations slip through

Grounded Prompt

"Answer using ONLY the context.
Cite sources as [1], [2].
If not in context, say so."

• Strict faithfulness rules
• Required attribution
• Explicit refusal behavior
• Measurable compliance

Citation Template

CITATION_SYSTEM_PROMPT = """You are a rigorous Research
Assistant. Answer using ONLY the provided context.

Rules:
1. Cite sources using [ID] format.
   Example: "Transformers use self-attention [1]."
2. If multiple sources, cite all: [1][2].
3. If not in context, state:
   "I cannot find this in the provided sources."
4. Provide detailed explanations when context allows.
"""

Context Formatting

def format_context_with_ids(results):
    """
    [1] (Title: Attention Is All You Need)
    Transformers use self-attention to process...

    [2] (Title: BERT Analysis)
    BERT demonstrated that pre-training on...
    """
    formatted = []
    for i, doc in enumerate(results, 1):
        title = doc['metadata'].get('title', 'Unknown')
        header = f"[{i}] Title: {title}"
        formatted.append(f"{header}\n{doc['text']}")
    return "\n\n".join(formatted)

Input / Output Example

Input:

Context: [1] Title: FlashAttention Paper — FlashAttention is an IO-aware exact attention algorithm that uses tiling to reduce memory reads/writes…

Question: What is FlashAttention?

Output:

FlashAttention is an IO-aware exact attention algorithm that uses a tiling approach to reduce the number of memory reads and writes between GPU high-bandwidth memory (HBM) and on-chip SRAM [1]. This makes it significantly faster than standard attention implementations while producing mathematically identical results [1].

B. Context Window Management

Staying within token budgets

The Overflow Problem

Problem: You retrieved 20 chunks. That’s 15,000 tokens. Your LLM’s budget is 4,000 tokens for context.

Consequences of overflow:

• API error (context too long)
• Truncation (losing relevant content)
• Higher cost (you pay per input token)
• Diluted attention (LLM struggles with too much)

Token Counting

tiktoken — OpenAI’s fast BPE tokenizer.

import tiktoken

def fit_context_to_budget(results, max_tokens=3000,
                          model="gpt-4"):
    """Select as many results as fit in the budget."""
    encoding = tiktoken.encoding_for_model(model)
    current_tokens = 0
    selected = []

    for doc in results:
        text_tokens = len(encoding.encode(doc['text']))
        # Heuristic for metadata/formatting overhead
        overhead = 20

        if current_tokens + text_tokens + overhead > max_tokens:
            break

        selected.append(doc)
        current_tokens += text_tokens + overhead

    return selected

Upgraded RAGService

async def answer_with_citations(self, query):
    # 1. Retrieve (Advanced Retrieval)
    results = await self.retriever.retrieve(query)

    # 2. Prune to fit context window
    pruned = fit_context_to_budget(results, max_tokens=4000)

    # 3. Format with citation IDs
    context = format_context_with_ids(pruned)

    # 4. Generate with citation prompt
    messages = [
        {"role": "system", "content": CITATION_SYSTEM_PROMPT},
        {"role": "user",
         "content": f"Context:\n{context}\n\nQuestion: {query}"}
    ]
    response = await self.llm.chat(messages=messages)

    return {"answer": response,
            "citations_used": pruned}

Streaming

import litellm

async def stream_answer(self, query):
    """Token-by-token streaming for better UX."""
    # ... setup prompt ...

    stream = litellm.completion(
        model=self.model,
        messages=messages,
        stream=True  # Key flag
    )

    for chunk in stream:
        if chunk.choices[0].delta.content:
            yield chunk.choices[0].delta.content

UX Impact

Users generally perceive streaming responses as significantly faster than waiting for a complete response, even when total time is the same.

C. Retrieval Evaluation

Measuring retrieval quality with data, not feelings

Why Evaluate?

“It returns results” is not the same as “it returns the right results.”

• Poor retrieval = #1 source of hallucination
• You can’t optimize what you can’t measure
• Changes to chunking/embedding can silently break retrieval
• Evaluation enables data-driven decisions

Golden Dataset

RETRIEVAL_BENCHMARK = [
    {
        "query": "What are ethical guidelines for AI?",
        "relevant_chunk_ids": [
            "doc_ethics_sec2_chunk0",
            "doc_ethics_sec3_chunk1"
        ]
    },
    {
        "query": "Explain transformer self-attention.",
        "relevant_chunk_ids": [
            "paper_attention_chunk2",
            "paper_attention_chunk3"
        ]
    },
    # ... 20-50 curated examples
]

Manually curated query → expected document pairs. This is your ground truth.

Hit Rate@K

“Did we find something useful in the top K?”

\[\text{Hit Rate@K} = \frac{\text{queries with at least 1 relevant doc in top K}}{\text{total queries}}\]

def hit_rate_at_k(retrieved_ids, relevant_ids, k):
    hits = 0
    for retrieved, relevant in zip(retrieved_ids, relevant_ids):
        if any(doc_id in relevant
               for doc_id in retrieved[:k]):
            hits += 1
    return hits / len(retrieved_ids)

Industry Benchmark: Hit Rate@5 > 0.80 is a common target for production-ready RAG systems, though requirements vary by domain.

MRR (Mean Reciprocal Rank)

“How quickly do we find the first useful result?”

\[\text{MRR} = \frac{1}{N} \sum_{i=1}^{N} \frac{1}{\text{rank}_i}\]

Query	First Relevant at Rank	Reciprocal Rank
Query 1	1	1.000
Query 2	3	0.333
Query 3	2	0.500
MRR		0.611

Precision & Recall

Precision@K

“How much of what we show is good?”

\[P@K = \frac{\text{relevant in top K}}{K}\]

Critical for: UI real estate, user trust, chat assistants

Recall@K

“How much of all the good stuff did we find?”

\[R@K = \frac{\text{relevant in top K}}{\text{total relevant}}\]

Critical for: legal discovery, exhaustive search, research

Which Metric When?

Use Case	Primary Metric	Why
Chat assistant	Precision@1	First answer must be correct
Search results page	Precision@5	Every result visible must be good
Legal discovery	Recall@K	Must find ALL relevant precedents
General QA	MRR	Quickly finding the best result
Quick health check	Hit Rate@5	“Is it working at all?”

Corrective RAG (CRAG)

Corrective Retrieval-Augmented Generation (Yan et al., 2024).

flowchart LR
    Q["Query"] --> R["Retrieve<br/>Documents"]
    R --> E{"Evaluate<br/>Relevance"}
    E -- "High<br/>Confidence" --> P["Pass Through"]
    E -- "Ambiguous" --> F["Filter Noise<br/>+ Supplement"]
    E -- "Incorrect" --> W["Discard +<br/>Web Search"]
    P & F & W --> G["LLM<br/>Generation"]

    style Q fill:#9B8EC0,stroke:#1C355E,color:#fff
    style R fill:#00C9A7,stroke:#1C355E,color:#fff
    style E fill:#FF7A5C,stroke:#1C355E,color:#fff
    style P fill:#00C9A7,stroke:#1C355E,color:#fff
    style F fill:#9B8EC0,stroke:#1C355E,color:#fff
    style W fill:#FF7A5C,stroke:#1C355E,color:#fff
    style G fill:#1C355E,stroke:#1C355E,color:#fff

Retrieval quality is evaluated automatically — a corrective action is taken based on confidence.

CRAG — When to Use

Best fit for:

• Noisy corpora — many tangentially-related documents reduce retrieval precision
• Time-sensitive knowledge — internal docs may be outdated; web fallback provides freshness
• High-stakes domains — medical, legal, financial, where a wrong answer is worse than no answer

Factor	Impact
Web fallback latency	+1–3 seconds per corrected query
Knowledge freshness	Dramatically improved for dynamic topics
Implementation cost	Requires a relevance evaluator + fallback retriever

Self-RAG — Adaptive Retrieval

Self-RAG: Learning to Retrieve, Generate, and Critique (Asai et al., 2023).

Standard RAG always retrieves regardless of need. Self-RAG lets the model decide.

The model generates reflection tokens inline as it reasons:

Token	Question the Model Asks
[Retrieve]	“Do I need external knowledge here?”
[IsRel]	“Is this retrieved passage relevant to the query?”
[IsSup]	“Does this passage support my claim?”
[IsUse]	“Is my final output useful to the user?”

For simple factual questions, Self-RAG skips retrieval entirely — saving latency and cost.

Self-RAG vs Standard RAG

Aspect	Standard RAG	Self-RAG
Retrieval trigger	Always	Adaptive (on demand)
Self-critique	No	Yes (reflection tokens)
Latency	Predictable	Variable
Simple query overhead	High	Low (skips retrieval)
Complex query accuracy	Moderate	Higher
Implementation complexity	Low	High (fine-tuned model)

When to Apply

CRAG when your knowledge base is noisy or incomplete. Self-RAG when query complexity varies widely and retrieval should be selective.

D. Generation Evaluation

Catching silent generation failures

The Silent Failure

The Problem

Retrieval failures are obvious: “No results found.”

Generation failures are silent: The LLM confidently states “The moon is made of green cheese [1].”

We need automated quality checks that catch:

• Hallucinated facts not in the context
• Answers that don’t address the question
• Misattributed citations

LLM-as-Judge

Instead of expensive human review, use a strong LLM (GPT-4) to grade the output of your RAG system.

Judge Prompt: "Given this context and question,
              rate the answer's faithfulness 0-1.
              Does every claim come from the context?"

DeepEval, RAGAS, and other frameworks automate this pattern.

Note: LLM judges can exhibit biases (position bias, verbosity preference). Use consistent prompts and validate judge scores against human spot-checks.

Core Metrics

Metric	What It Measures	Catches
Faithfulness	Is every claim from the context?	Hallucinations
Answer Relevance	Does it address the question?	Off-topic answers
Contextual Precision	Is relevant context ranked high?	Poor retrieval ordering

All three use “LLM-as-Judge” — a strong model evaluates the output.

DeepEval Setup

from deepeval.metrics import (
    FaithfulnessMetric,
    AnswerRelevanceMetric,
    ContextualPrecisionMetric
)

faithfulness = FaithfulnessMetric(
    threshold=0.7, model="gpt-4o", include_reason=True)

relevance = AnswerRelevanceMetric(
    threshold=0.7, model="gpt-4o", include_reason=True)

context_precision = ContextualPrecisionMetric(
    threshold=0.7, model="gpt-4o", include_reason=True)

Test Cases

from deepeval import assert_test
from deepeval.test_case import LLMTestCase

async def test_faithfulness():
    result = await rag_service.answer_question(
        "What are the benefits of RAG?")

    test_case = LLMTestCase(
        input="What are the benefits of RAG?",
        actual_output=result['answer'],
        retrieval_context=[
            doc['text'] for doc in result['sources']
        ]
    )

    # Fails if faithfulness < 0.7
    assert_test(test_case, [faithfulness])

E. Evaluation Pipeline

From ad-hoc testing to regression testing

Golden Dataset for Regression

[
  {
    "input": "What is the project timeline?",
    "expected_output": "The project starts Q1 2024...",
    "context": ["Project alpha: Start Jan 2024..."]
  },
  {
    "input": "Who is the lead author?",
    "expected_output": "Dr. Smith is the lead author.",
    "context": ["Authors: Dr. Smith, John Doe..."]
  }
]

20-50 curated examples. Run on every code change to catch regressions.

Running Tests

def run_regression_test():
    dataset = EvaluationDataset()
    dataset.add_test_cases_from_json_file(
        "data/eval/golden_dataset.json",
        input_key="input",
        actual_output_key="expected_output",
        retrieval_context_key="context"
    )

    for case in dataset.test_cases:
        # Run your actual RAG pipeline
        result = rag_service.answer(case.input)
        case.actual_output = result['answer']

        # Grade with LLM judge
        assert_test(case, [faithfulness, relevance])

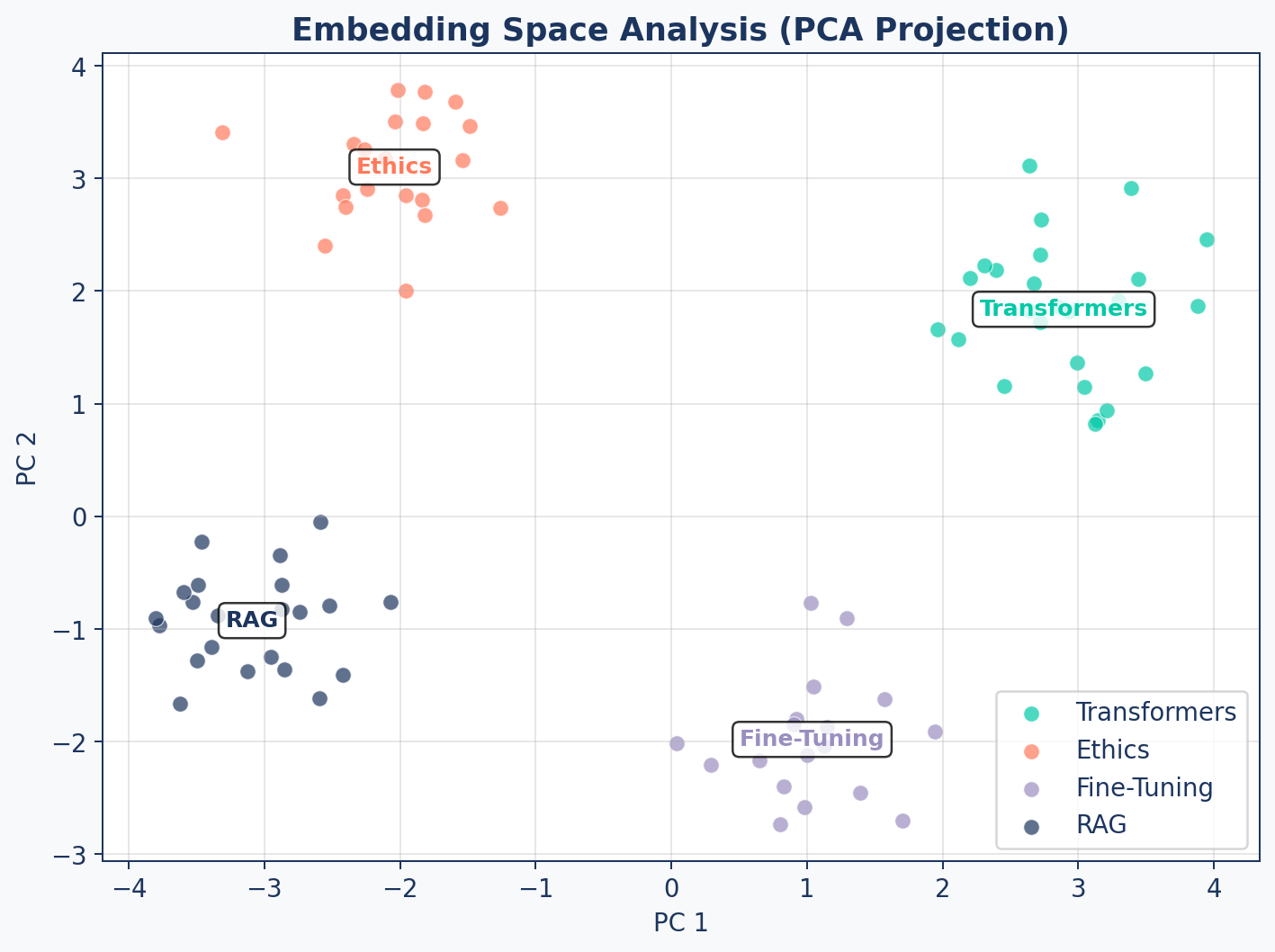

Embedding Analysis

Cluster Distances

A good embedding space has low intra-cluster and high inter-cluster distances.

Metric	Good	Bad
Intra-cluster distance	< 0.3	> 0.5
Inter-cluster distance	> 0.6	< 0.4
Separation ratio (inter/intra)	> 2.0	< 1.0

These thresholds are rough starting points. Actual “good” values depend on the embedding model and domain — calibrate against your own corpus.

Diagnostic Tool

Run embedding analysis periodically. A sudden drop in cluster separation may indicate document quality issues or embedding model drift.

CI/CD Integration

flowchart LR
    A["PR to main"] --> B["Run Retrieval<br/>Eval Suite"]
    B --> C["Run Generation<br/>Eval Suite"]
    C --> D{"Faithfulness<br/>> 0.8?"}
    D -- Yes --> E["Merge PR"]
    D -- No --> F["Block +<br/>Alert"]

    style A fill:#9B8EC0,stroke:#1C355E,color:#fff
    style B fill:#00C9A7,stroke:#1C355E,color:#fff
    style C fill:#FF7A5C,stroke:#1C355E,color:#fff
    style D fill:#9B8EC0,stroke:#1C355E,color:#fff
    style E fill:#00C9A7,stroke:#1C355E,color:#fff
    style F fill:#FF7A5C,stroke:#1C355E,color:#fff

Gate every PR on evaluation metrics. A change to chunking can silently break generation quality.

F. Wrap-up

The complete evaluation framework

Complete Evaluation Framework

flowchart TD
    A["RAG System"] --> B["Retrieval Eval"]
    A --> C["Generation Eval"]

    B --> D["Hit Rate@K"]
    B --> E["MRR"]
    B --> F["Precision/Recall@K"]
    B --> G["Embedding Analysis"]

    C --> H["Faithfulness"]
    C --> I["Answer Relevance"]
    C --> J["Contextual Precision"]

    D & E & F & G & H & I & J --> K["Dashboard +<br/>CI/CD Gates"]

    style A fill:#1C355E,stroke:#1C355E,color:#fff
    style B fill:#00C9A7,stroke:#1C355E,color:#fff
    style C fill:#FF7A5C,stroke:#1C355E,color:#fff
    style K fill:#9B8EC0,stroke:#1C355E,color:#fff

The Feedback Loop

Evaluation is not a one-time task — it’s a continuous feedback loop.

Step	Action
1. Measure	Run eval suite on current system
2. Diagnose	Identify weakest metric (low recall? hallucinations?)
3. Fix	Adjust chunking, retrieval, or prompts
4. Re-measure	Verify improvement didn’t break other metrics
5. Automate	Add to CI/CD, set up alerts

Key Takeaways

1. Citation-aware prompting with [ID] references ensures attributable answers
2. Context window management with token counting prevents overflow and controls cost
3. Retrieval metrics (Hit Rate, MRR, Precision, Recall) measure search quality
4. Generation metrics (Faithfulness, Relevance) catch silent LLM failures
5. Golden datasets enable regression testing across code changes
6. CI/CD gates prevent quality degradation from reaching production

Up Next

Lab 5: Build the Evaluation Framework — create a golden dataset, implement retrieval metrics, configure DeepEval, and run your first automated quality assessment.
