API & Provider Landscape

Architecture Fundamentals — Session 2

2026-04-26

A. The Provider Landscape

Choosing how to access LLMs

Agenda

A. Provider Landscape — Proprietary vs Open-Source vs Self-Hosted
B. API Anatomy — How HTTP calls to LLMs work with LiteLLM
C. Performance & Context — TTFT metrics and API cost trade-offs
D. Security — Protecting your API keys
E. Wrap-up — Key takeaways

Model Access Decision Tree

graph TD
    A["Your Application"] --> B{"Model Access<br/>Strategy"}
    B --> C["Proprietary APIs"]
    B --> D["Inference Providers"]
    B --> E["Self-Hosted / Local"]

    C --> C1["OpenAI / GPT-4"]
    C --> C2["Anthropic / Claude"]
    C --> C3["Google / Gemini"]

    D --> D1["OpenRouter (Aggregator)"]
    D --> D2["Together AI"]
    D --> D3["Groq (LPU)"]

    E --> E1["Ollama (Desktop)"]
    E --> E2["vLLM (Server / Cloud)"]
    E --> E3["Private VPC (TGI)"]

    style B fill:#FF7A5C,stroke:#1C355E,color:#fff
    style C fill:#1C355E,stroke:#1C355E,color:#fff
    style D fill:#00C9A7,stroke:#1C355E,color:#fff
    style E fill:#9B8EC0,stroke:#1C355E,color:#fff

Provider Comparison

Aspect	Proprietary	Inference Providers	Self-Hosted / Local
Cost	$0.50–$60 / M tokens	Free tiers + wholesale prices	Hardware / GPU costs
Quality	State-of-the-art	Top proprietary + open-source	Same as open-source
Latency	Low (optimized infra)	Slight extra hop	Depends on hardware
Privacy	Data sent to provider	Routed via aggregator	Full data control
Rate Limits	Generous (paid)	Restrictive (free)	No limits (HW-bound)
Setup	Minutes	Minutes	Hours to days

Why We Use LiteLLM + OpenRouter

For this course:

Zero cost — Free models on OpenRouter
Unified interface — One API for 100+ models
Provider abstraction — Switch models by changing one string
Production-ready — Built-in retries and fallbacks

In production you’ll mix providers:

Prototyping → OpenRouter free tier
Production quality → Direct OpenAI / Anthropic
Privacy-sensitive → Self-hosted (Ollama, vLLM)

Design with provider abstraction from day one.

A Moving Target: Benchmarks

The field moves fast. New models are released weekly — always check if a better tool has emerged for your use case.

How to find the best model for your task:

Artificial Analysis — Comparison of performance, speed, and cost.
Balsam Leaderboard — Specialized benchmarks for Arabic AI by KSAA.
Arabic LLM Leaderboard — Silma.ai’s ranking of Arabic language models.
Open Arabic LLM Leaderboard (OALL) — The community hub for Arabic model evaluation.

B. API Anatomy

How LiteLLM routes your requests

The Request–Response Cycle

sequenceDiagram
    participant App as Your Application
    participant Lite as LiteLLM (Local)
    participant API as OpenRouter API
    participant Model as Hosted Model

    App->>Lite: completion(model="openrouter/...", messages=[...])
    Lite->>API: POST /chat/completions (OpenAI format)
    Note over Lite,API: Authorization: Bearer sk-or-v1-xxx
    API->>Model: Execute generation
    Model->>API: Return response
    API->>Lite: JSON response
    Lite->>App: Python object

Why LiteLLM?

LiteLLM translates your single call into the correct format for any provider — OpenAI, Anthropic, Groq, Ollama — without you changing your code.

Why `messages`?

From Session 1: LLMs are next-word predictors

A base LLM sees a stream of text and predicts what comes next — nothing more.

The problem: it needs context — who said what, and in what order — to predict the right next word.

The messages list is how we hand that context to the model:

Role	What it represents	Completion analogy
`system`	Standing instructions / persona	The invisible prefix the author set
`user`	The human’s turn	The last thing said before the model continues
`assistant`	Previous model replies	What the model already wrote — it continues from here

One mental model

Think of the entire messages list as a single document the model completes. Each role is just a labelled paragraph — the model’s job is to write the next assistant paragraph.

Request Structure

Install with uv pip install litellm python-dotenv, then:

import os
from dotenv import load_dotenv
from litellm import completion

load_dotenv()

response = completion(
    model="openrouter/meta-llama/llama-3-8b-instruct:free",
    messages=[
        {"role": "user", "content": "How many 'G's in 'huggingface'?"}
    ],
    max_tokens=100,
    temperature=0.7
)

print(response.choices[0].message.content)

Same format, any provider

Replace "openrouter/meta-llama/..." with "gpt-4o" or "claude-3-5-sonnet" — everything else stays the same.

Key API Parameters

Parameter	What It Controls	Recommended Values
`temperature`	Randomness (0 = deterministic)	0.1–0.3 factual, 0.7–0.9 creative
`max_tokens`	Response length limit	Set based on expected output
`top_p`	Nucleus sampling threshold	0.9 (default)
`messages`	Conversation history	List of `{"role": ..., "content": ...}`
`model`	Provider/model to call	`"openrouter/..."`, `"gpt-4o"`, etc.

C. Performance & Context Windows

Intelligence has a memory limit, and performance has a cost.

The Performance Trinity

Latency, throughput, and cost — you can’t optimize what you don’t measure.

Metric	Definition	Target
TTFT	Time to first token — first byte user sees	< 500 ms
TPS	Tokens per second — generation speed	> 30 tok/s
E2E Latency	Total time: request → complete response	< 5 s

Why TTFT Matters Most

User Perception

Research shows users perceive streaming responses starting at 200 ms as “instant,” while a 2-second blank screen feels broken — even if total content arrives at the same time.

# Measuring TTFT with streaming
import time
from litellm import completion

start = time.time()
first_token_time = None

response = completion(
    model="openrouter/meta-llama/llama-3-8b-instruct:free",
    messages=[{"role": "user", "content": "Tell me a story."}],
    stream=True,
)

for chunk in response:
    if chunk.choices[0].delta.content:
        if first_token_time is None:
            first_token_time = time.time()
            ttft_ms = (first_token_time - start) * 1000
            print(f"TTFT: {ttft_ms:.0f} ms")

Context Windows & Your API Bill

128K context ≠ 128K tokens free

Every token in your context window is charged on every request — both the history you send and the reply you receive.

KV-cache intuition: The API caches the mathematical representation of previous tokens so each new word generated is cheap. But the cache lives in GPU memory — and the context window is its size limit.

Context length	Relative compute cost
1K tokens	1×
8K tokens	8×
128K tokens	128×

Keep system prompts concise. Don’t send full conversation history when a summary suffices.

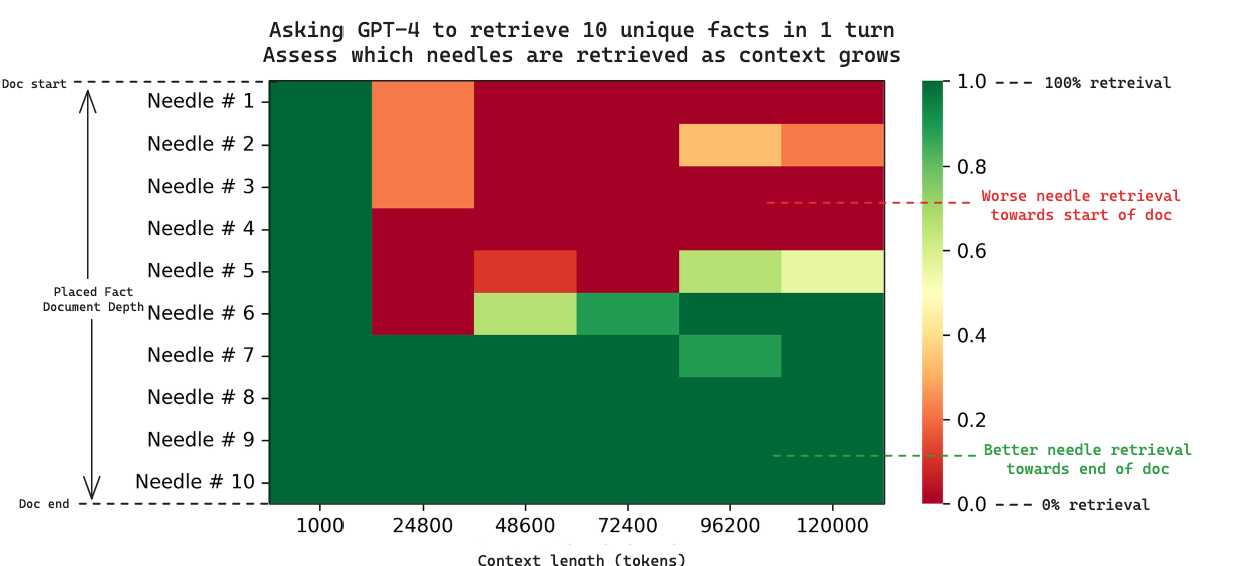

Performance: The Needle in the Haystack

Lost in the Middle: LLMs often ignore facts buried in the middle.
Recall Degradation: As context grows, retrieval ability drops.
Placement Matters: Put crucial info at the start or end.

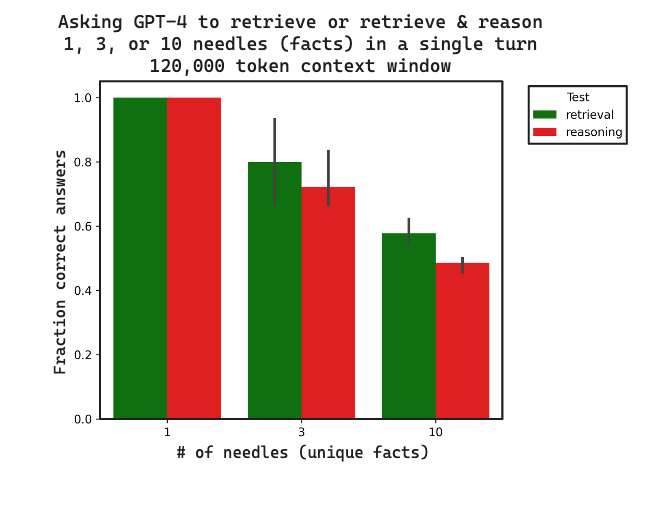

Multi-Needle & Reasoning Challenges

Retrieval is the Upper Bound

Fact Volume: Retrieval accuracy drops significantly as the number of “needles” (facts) increases.
Reasoning Penalty: Asking the model to think about multiple retrieved facts is harder than just finding them.
Upper Bound: If the model can’t retrieve it, it can’t reason about it.

Optimization Strategies

Summarization: Don’t send the full history; send a “state of the union.”
Context Pruning: Use RAG to only send relevant snippets, not whole documents.
Strategic Placement: Put instructions and key constraints at the very end of the prompt (the “Recency Bias”).
Check Your Bill: Use litellm’s usage tracking to monitor costs in real-time.

D. Security First

Protecting your API keys

Never Hardcode Secrets

Rule #1

Never put API tokens directly in source code. Not even “just for testing.”

# ❌ DO NOT this
response = completion(model="...", api_key="sk-or-v1-abc123realtoken")

# ✅ DO this
import os
from dotenv import load_dotenv
load_dotenv()

# LiteLLM automatically reads OPENROUTER_API_KEY from environment
response = completion(model="openrouter/meta-llama/llama-3-8b-instruct:free",
                      messages=[{"role": "user", "content": "Hello"}])

The `.env` Approach (Development)

Step 1: Create a .env file in your project root

# .env
OPENROUTER_API_KEY=sk-or-v1-your_token_here

Step 2: Load it securely in Python

import os
from dotenv import load_dotenv

load_dotenv()

def validate_environment():
    """Ensure required API keys are present."""
    token = os.getenv("OPENROUTER_API_KEY")
    if not token:
        raise EnvironmentError(
            "OPENROUTER_API_KEY not found. "
            "Create a .env file or set the environment variable."
        )

Critical: `.gitignore`

Do This Immediately

Add .env to .gitignore before your first commit. One leaked token on GitHub = account compromise.

# .gitignore
.env
.env.local
*.env

Production secrets management:

Environment	Tool
Development	`.env` + `python-dotenv`
CI/CD	GitHub Secrets, GitLab Variables
Production	AWS Secrets Manager, HashiCorp Vault, Azure Key Vault

System Environment Variables (CI/CD)

# Linux / macOS
export OPENROUTER_API_KEY=sk-or-v1-your_token_here

# Windows PowerShell
$env:OPENROUTER_API_KEY = "sk-or-v1-your_token_here"

# Windows CMD
set OPENROUTER_API_KEY=sk-or-v1-your_token_here

Why Not Just .env Everywhere?

Environment variables can leak through process listings and crash dumps. In production, use secrets managers that provide encryption, rotation, and audit logging.

E. Wrap-up

Key Takeaways

Three access strategies: proprietary APIs, inference providers (like OpenRouter), and self-hosted/local — choose based on cost, quality, latency, and privacy.
LiteLLM gives you a single, unified interface to 100+ model providers.
Context Windows are expensive and performance-bound—be strategic about what you include.
OpenRouter provides free access to strong models—perfect for prototyping.
Benchmarks move fast—use tools like Artificial Analysis and the OALL (Arabic LLM Leaderboard) to stay updated.
Security is non-negotiable — use .env and secrets managers.
Design for provider abstraction — make switching providers trivial.

Up Next

Lab 2: Build a production-grade LiteLLM client — from “hello world” to TTFT measurement.
